10 TON BIN

HEIGHT 21' 9"

WIDTH   9' 6”



DIMENSIONS

  • 532 Cubic feet or 430 BU. 9' 6" Diameter

  • Skids are 11' 6" 5.5" OD Round extra heavy wall thickness

  • Standard nine foot overhead clearance

  • Eleven-foot wide drive thru clearance



STANDARD FEATURES

  • EPOXY LINER INSIDE BIN

  • MADE WITH 12 GUAGE METAL

  • SKID MOUNTING

  • GROUND-CONTROLLED TOP LID

  • WINDSOCK FOR BOTTOM GATE

  • STANDARD 9' OVERHEAD CLEARANCE

  • 11' WIDE DRIVE THROUGH CLEARANCE

  • PRIMED AND PAINTED WITH INDUSTRIAL ENAMEL

  • SIGHT GLASS FOR MONITORING FEED LEVELS

  • CAPACITIES AVALIABLE: 10, 15, 30, OR 35 TONS

  • DIVIDER FOR HOLDING TWO FEED TYPES (OPT. FEATURE)

  • BUCKET CHUTE (OPT. FEATURE)

  • CAN BE BUILT TO EXTRA HIGH OR WIDE SPECS

Troy Minyard
15 TON BIN

HEIGHT 24' 9"

WIDTH   9’ 6”



DIMENSIONS

  • 765 Cubic feet or 617 BU. 9' 6" Diameter

  • Skids are 11' 6" 5.5" OD Round extra heavy wall thickness

  • Standard nine foot overhead clearance

  • Eleven-foot wide drive thru clearance



STANDARD FEATURES

  • EPOXY LINER INSIDE BIN

  • MADE WITH 12 GUAGE METAL

  • SKID MOUNTING

  • GROUND-CONTROLLED TOP LID

  • WINDSOCK FOR BOTTOM GATE

  • STANDARD 9' OVERHEAD CLEARANCE

  • 11' WIDE DRIVE THROUGH CLEARANCE

  • PRIMED AND PAINTED WITH INDUSTRIAL ENAMEL

  • SIGHT GLASS FOR MONITORING FEED LEVELS

  • CAPACITIES AVALIABLE:10, 15, 30, OR 35 TONS

  • DIVIDER FOR HOLDING TWO FEED TYPES (OPT. FEATURE)

  • BUCKET CHUTE (OPT. FEATURE)

  • CAN BE BUILT TO EXTRA HIGH OR WIDE SPECS

WE BUILD THE BEST BIN ON THE MARKET TODAY! WE’RE IN OUR 20TH YEAR OF BUSINESS AND STILL GOING STRONG!

Troy Minyard
30 TON BIN

HEIGHT 27' 8"

WIDTH   12’



DIMENSIONS

  • 1381 Cubic feet or 1113 BU. 12' Diameter

  • Skids are 11' 6" 5.5" OD Round extra heavy wall thickness

  • Standard nine foot overhead clearance

  • Eleven-foot wide drive thru clearance



STANDARD FEATURES

  • EPOXY LINER INSIDE BIN

  • MADE WITH 12 GUAGE METAL

  • SKID MOUNTING

  • GROUND-CONTROLLED TOP LID

  • WINDSOCK FOR BOTTOM GATE

  • STANDARD 9' OVERHEAD CLEARANCE

  • 11' WIDE DRIVE THROUGH CLEARANCE

  • PRIMED AND PAINTED WITH INDUSTRIAL ENAMEL

  • SIGHT GLASS FOR MONITORING FEED LEVELS

  • CAPACITIES AVALIABLE:10, 15, 30, OR 35 TONS

  • DIVIDER FOR HOLDING TWO FEED TYPES (OPT. FEATURE)

  • BUCKET CHUTE (OPT. FEATURE)

  • CAN BE BUILT TO EXTRA HIGH OR WIDE SPECS

RED WHITE BLUE BIN.jpg
Troy Minyard

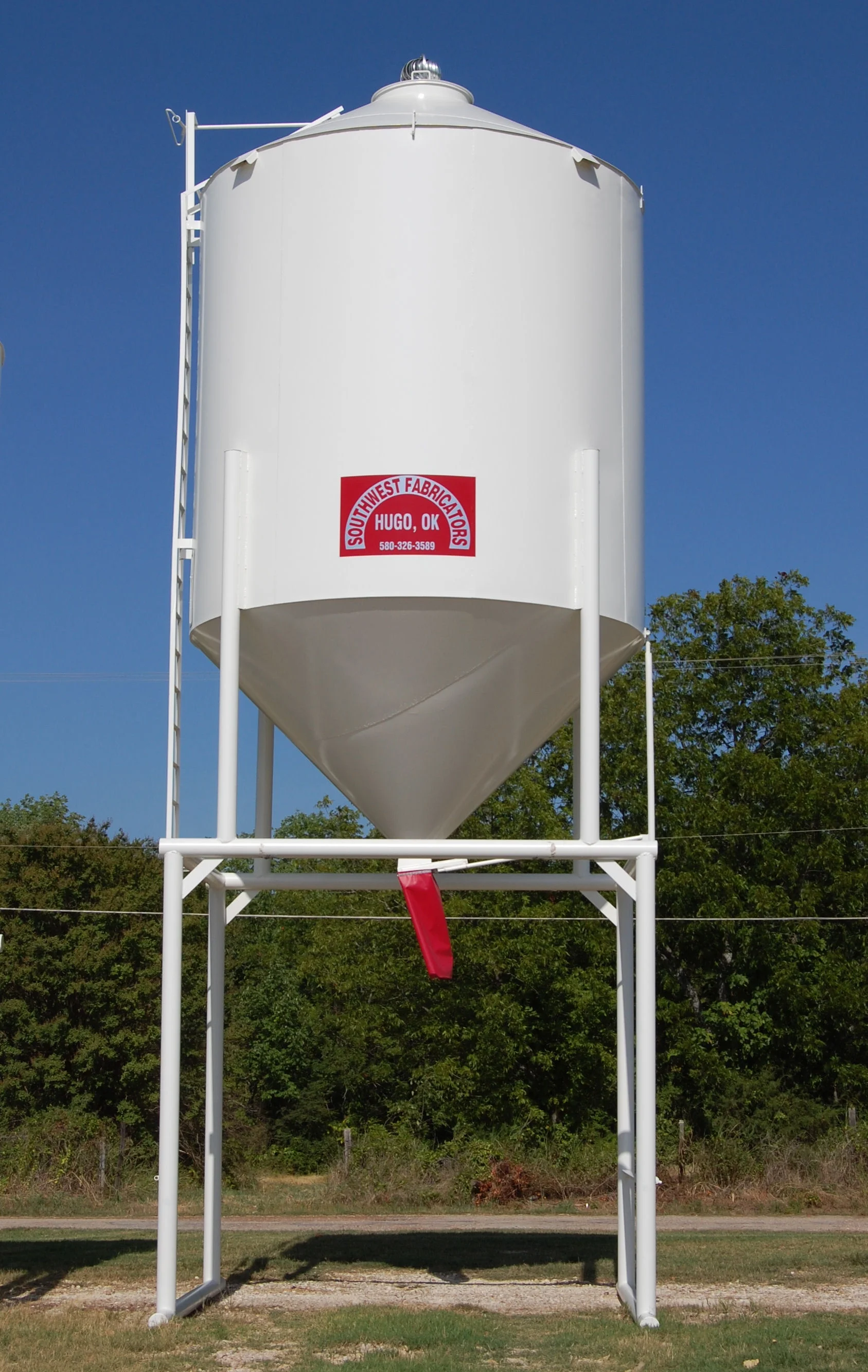

35 TON BIN

HEIGHT 30' 8"

WIDTH   12'



DIMENSIONS

  • 1721 Cubic feet or 1388 BU. 12' Diameter

  • Skids are 11' 6" 5.5" OD Round extra heavy wall thickness

  • Standard nine foot overhead clearance

  • Eleven-food wide drive thru clearance



STANDARD FEATURES

  • ROUND CONSTRUCTION

  • MADE WITH 12 GUAGE METAL

  • SKID MOUNTING

  • GROUND-CONTROLLED TOP LID

  • WINDSOCK FOR BOTTOM GATE

  • STANDARD 9' OVERHEAD CLEARANCE

  • ELEVEN FOOT WIDE DRIVE THROUGH CLEARANCE

  • PRIMED AND PAINTED WITH INDUSTRIAL ENAMEL

  • SIGHT GLASS FOR MONITORING FEED LEVELS

  • DIVIDER FOR HOLDING TWO FEED TYPES (OPT. FEATURE)

  • BUCKET CHUTE (OPT. FEATURE)

  • CAN BE BUILT TO EXTRA HIGH OR WIDE SPECS

Troy Minyard
